BOOTMOD3 N13 - BMW F20 F22 F23 F30 114I 116I 118I 316I 320I TUNE
Lang Racing Development can install your Bootmod3 tune at our Lake Forest, CA facility at no additional cost if purchased through us. We also provide before and after dyno tuning services on our Mustang dyno at additional cost.
World's First custom flash tuning platform for the BMW F series. Cloud based solution with a web based interface and mobile apps for iOS and Android. Developed and tested in-house from the ground up over the course of almost 2 years prior to its November 2016 debut with new features and updates being added regularly makes the bootmod3 platform a custom BMW factory DME tuning solution like no other on the market today.
Build the ultimate tune for your N13 powered vehicle and go from stock to full race calibration, and everywhere in between, with a map switch in the provided mobile app. bootmod3 calibrates the factory vehicle modules over the OBD port in a matter of minutes in the convenience of your driveway or anywhere internet access is available.
Stage 1 91 octane: up to 85% HP / 52% TQ
Stage 1 93 octane: up to 93% HP / 55% TQ
Stage 2 91 octane: up to 96% HP / 58%TQ
Stage 2 93 octane: up to 105% HP / 60% TQ
bootmod3 app and cloud services offer many unique features not found in any other flash tune including and currently available:

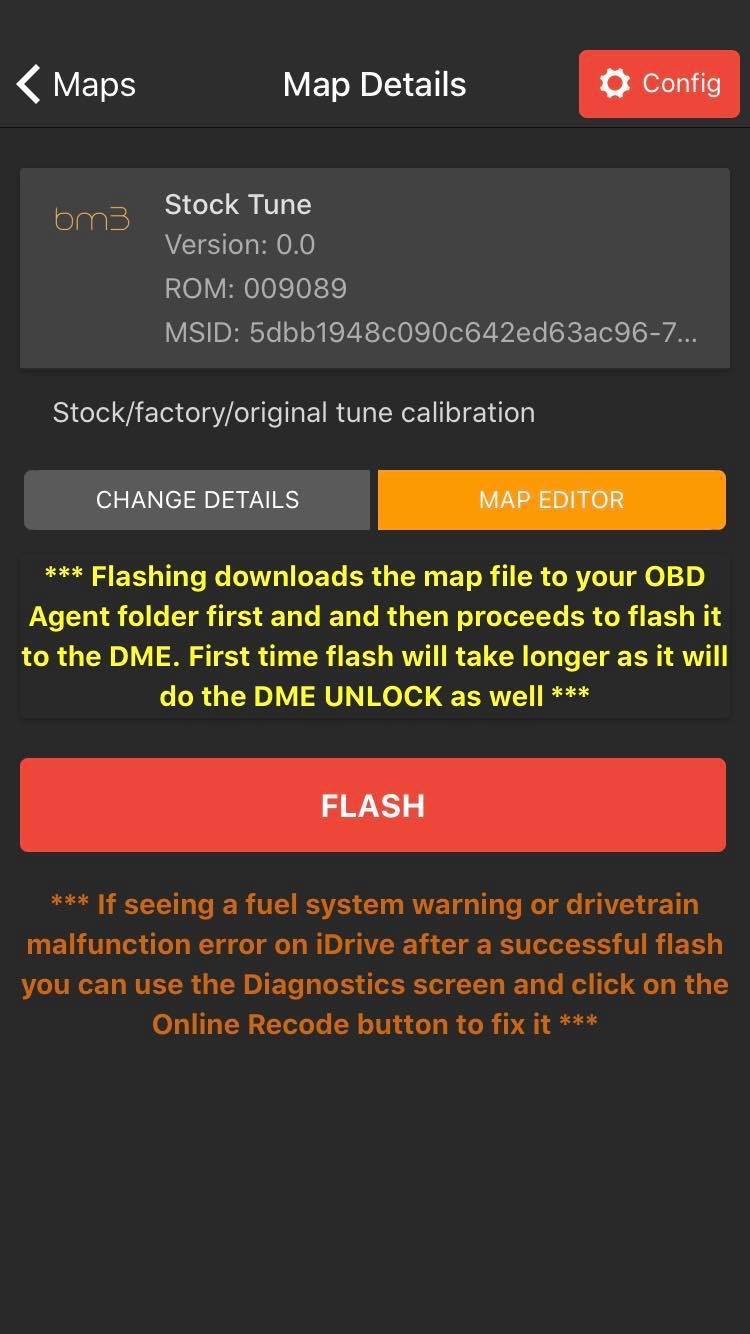

- Mobile app (iOS and Android) and Web (http://www.bootmod3.net) including Windows and macOS support
- One OTS map/tune included with the purchase
- Datalogging over 200 diagnostic channels, up to 40 channels concurrently
- Datalog sharing and charting without a need to upload to 3rd party websites or apps using the mobile app or web browser
- Cloud based storage for map data and datalogs
- Reverting back to stock performance map and re-locking the DME to stock programming
- Live Dash - realtime vehicle parameter monitoring via in-app gauges
- Read and clear trouble codes in all vehicle modules
- Reset learned adaptations (octane, knock, Valvetronic, etc)
- ECU power reset
- (Optional) Off the shelf (OTS) tunes for 91/93/Race gas/E85 octane
- (Optional) Custom tuning available through Lang Racing Development
Some of the map features provided:
- Top speed limiter removal
- Higher rev limiter
- Exhaust burble
- Cold start cat heat cycle and cat efficiency check removed (for off-road use)
- Maps for upgraded turbos
- E85/blend, race gas and meth injection tuning
- Custom Throttle mapping
- Backend Flash maps for use with piggybacks such as the JB4
*** OBD ENET cable required, available separately
*** bootmod3 OBD WiFi Agent device is not required to use the bootmod3 platform. It is a convenience option that removes the need for using a laptop in the car when using bootmod3's features. If you're looking to simply load a tune on the car without much datalogging and monitoring then using your laptop is the ticket for you.
*** Prior DME removal from the engine bay for unlocking OBD programming is NO LONGER REQUIRED.
